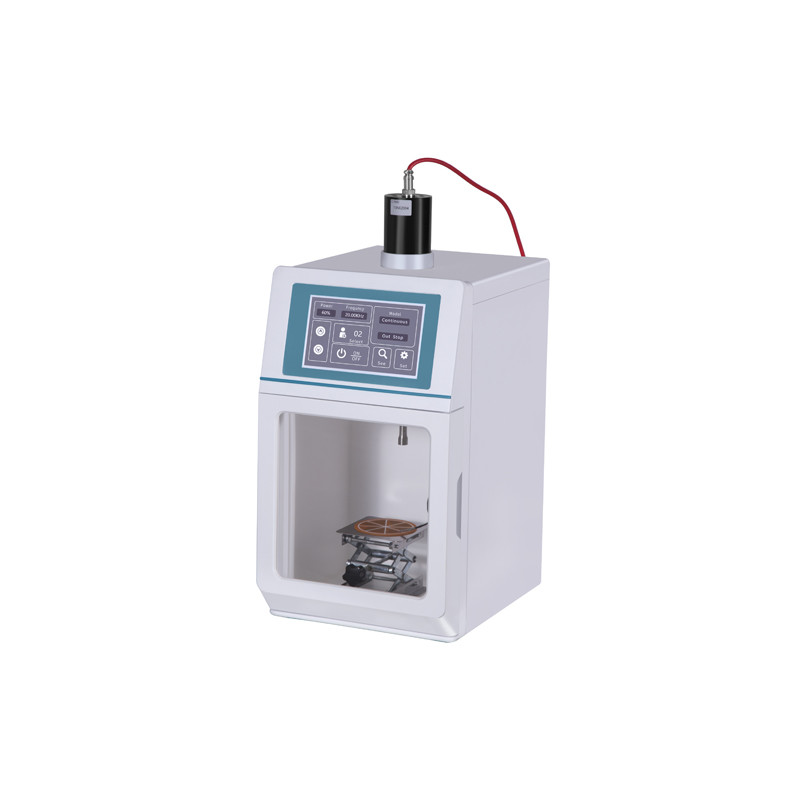

DL-1500Y Ultrasonic Cell Crusher Integrated Homogenizer Sonicator with Various Standard Probe
Mainly used in composite material preparation (nano-material dispersion), life sciences (cell-breaking extraction and crushing), pharmacy (Chinese herbal medicine and plant extraction), environmental science (extraction of soil organic matter), sewage treatment (degradation of COD), homogenization Mixing (accelerated dissolution, chemical reaction synthesis, oil-water emulsification), etc.
Features
3D Exponential Ultrasonic Probe with higher Output Efficiency and longer service life
3 Operation Modes : Continuous, Pulse and Timer(Timer 1min~99h)
7” Touch Screen for easy operation & observation
10 User Groups for programmable procedures
1%~100% Variable power output
19~26KHz Auto-tracking and Auto Amplitude Compensation with real time display
0℃～300℃ Sample temperature monitoring and auto protection
Operating power AC 85V~260V,fit for every Laboratory in the world.
| Model No. | Frequencies | Power | Standard Probe | Capacity | Optional Probes | Applications |
| DL-300Y | 19~26KHz | 300W | 3mm | 0.1~300ml |
3(0.1~50ml) 6(50~300ml) 10(200~300ml) |
EP tube Micro Sample |
| DL-500Y | 19~26KHz | 500W | 6mm | 0.1~600ml |
3(0.1~50ml) 6(50~500ml) 8(300ml~500ml) |
Small processing Capacity |
| DL-1000Y | 19~26KHz | 1000W | 10mm | 0.1~1200ml |
3(0.1~30ml) 6(50~400ml) 8(500ml~1200ml) |
Routine Laboratory |

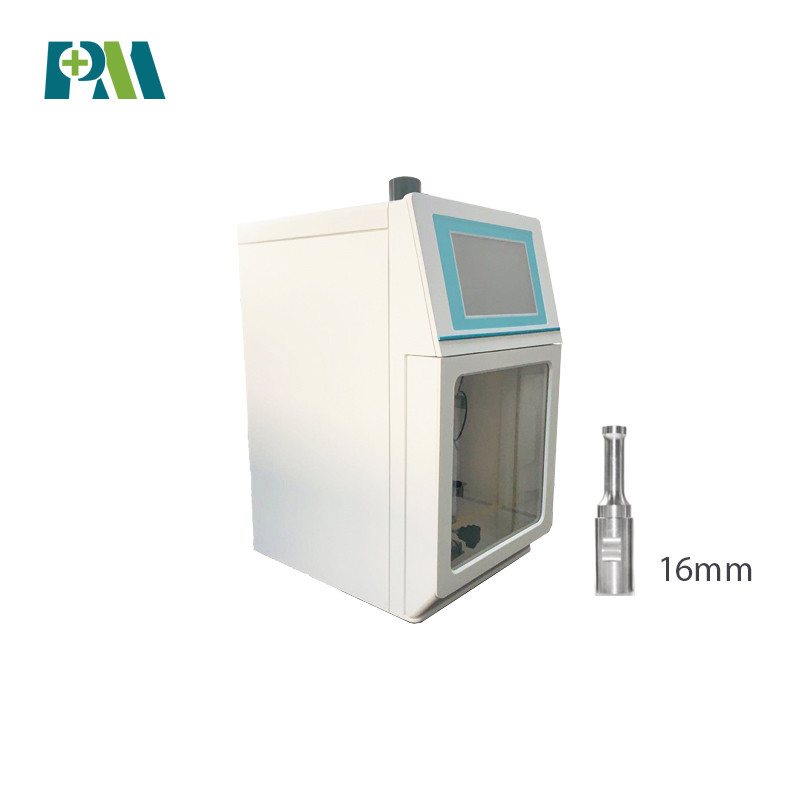

| DL-1500Y | 19~26KHz | 1500W | 16mm | 0.1~1800ml |
10(50~500ml) 16(50~1200ml) 18(1000ml~1800ml) |
Routine Laboratory |
| DL-1800Y | 19~26KHz | 1800W | 18mm | 0.1~2200ml |
10(50~500ml) 16(50~1200ml) 18(1000ml~2200ml) |
Large Processing Capacity |
| DL-2000Y | 19~26KHz | 2000W | 20mm | 0.1~3000ml |
10(50~500ml) 16(50~1200ml) 18(1000ml~2200ml) 20(1000~3000ml) |
Large Processing Capacity |
