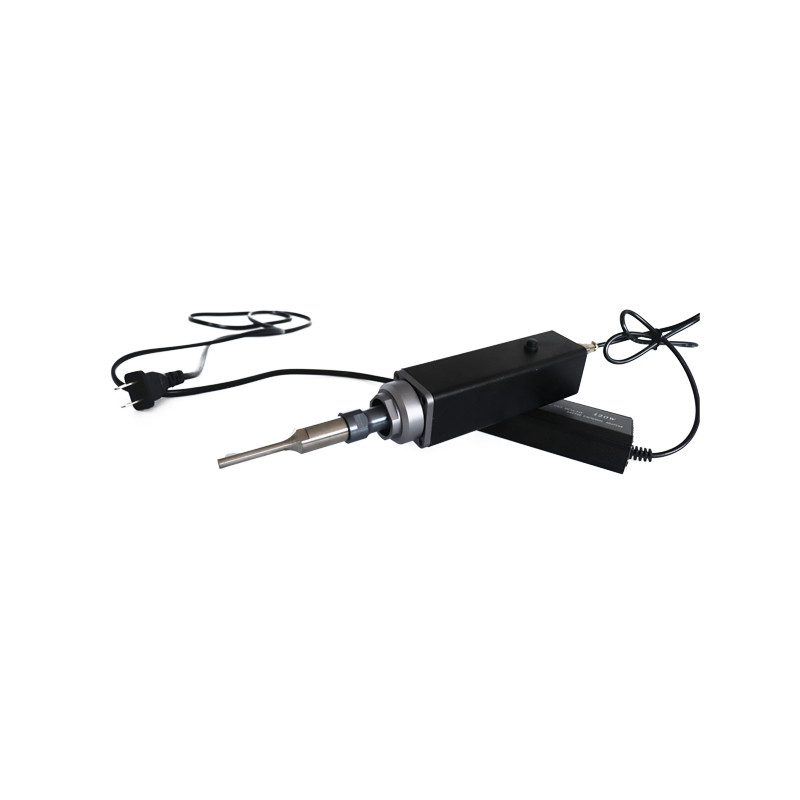

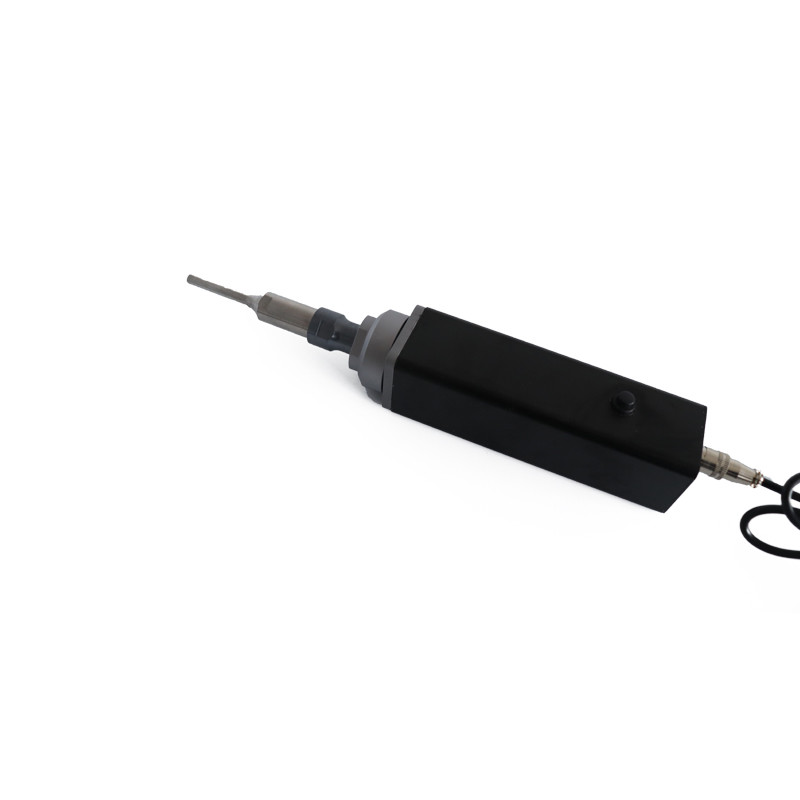

DL-150S PROMED Laboratory Compact Cell Disruptor Mixer Handheld Ultrasonic Homogenizer for Small-Scale Processing
Mainly used in composite material preparation (nano-material dispersion), life sciences (cell-breaking extraction and crushing), pharmacy (Chinese herbal medicine and plant extraction), environmental science (extraction of soil organic matter), sewage treatment (degradation of COD), homogenization Mixing (accelerated dissolution, chemical reaction synthesis, oil-water emulsification), etc.
Features
1. The handheld ultrasonic processor is a portable ultrasonic instrument developed based on a simple and reliable design concept;

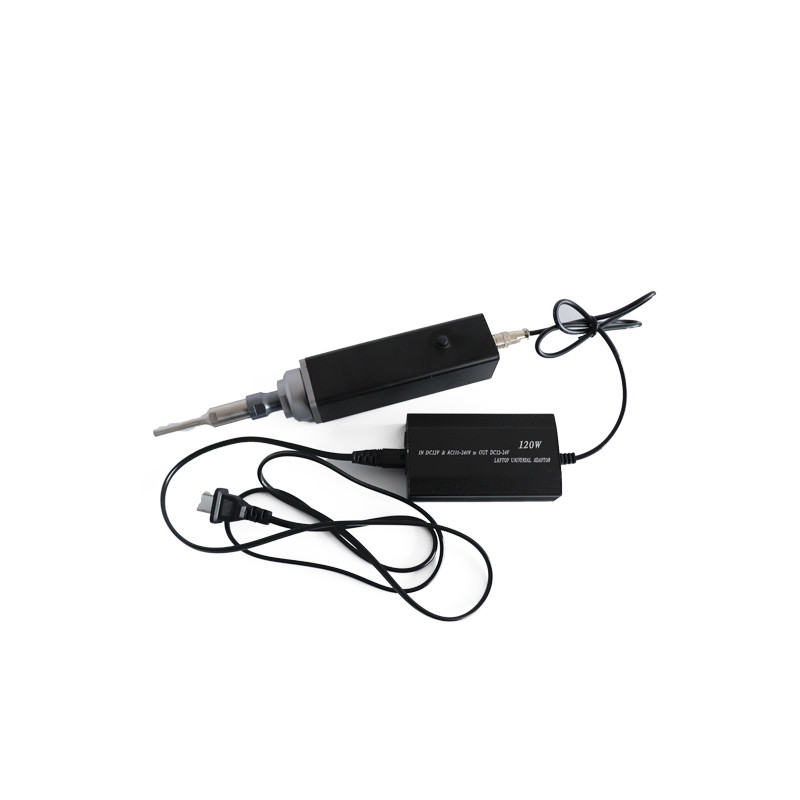

2. Integrated design of probe and host, small size, large processing capacity, compact structure, mainly composed of adjustable switching power supply (power adapter 12-24V/DC and
85-260V/AC) and ultrasonic vibration system, ultrasonic vibration system includes Composed of power amplifier, ultrasonic transducer, and horn, the integrated design of the ultrasonic vibration system has the advantages of high efficiency, energy saving, and portability;
3. The horn is made of titanium alloy material, which has the characteristics of high strength, high speed of sound, good corrosion resistance and high heat resistance, thereby extending the service life of the instrument;
4. The circuit of the product is made with chip technology, with automatic frequency tracking, automatic amplitude compensation, stable load, high electro-acoustic conversion efficiency, over-temperature protection, etc.;

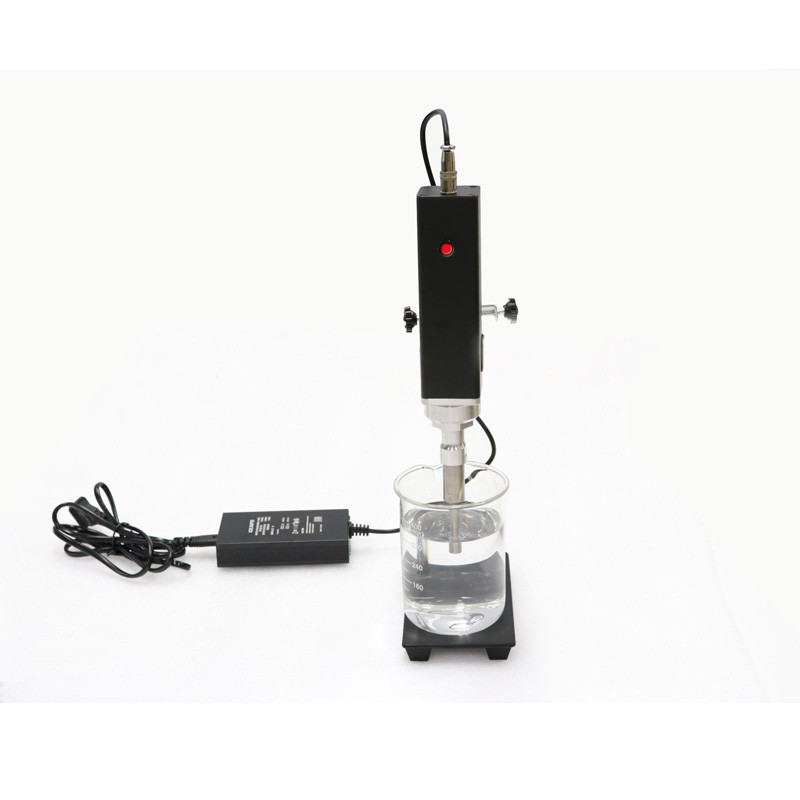

5. The ultrasound can be controlled manually, or the ultrasound can be fixed on the shelf, which is especially suitable for small or small sample processing (such as: EP tubes, microcentrifuge tubes and other containers);
6. The working voltage provides DC voltage and AC voltage, and also comes with on-board working cable, which is convenient for users to use outdoors.
| Model No. | Frequencies | Power | Standard Probe | Capacity | Optional Probes | Applications |
| DL-150S | 30KHz | 150W | 3mm | 0.1~100ml |
2(0.1~0.5ml) 3(0.5~30ml) 6(30~100ml) |
EP tube Microfuge tube |
| DL-200S | 30KHz | 200W | 6mm | 0.1~200ml |
3(0.1~30ml) 6(30~200ml) 8(100ml~200ml) |
EP tube Microfuge tube |
| DL-300S | 30KHz | 300W | 8mm | 0.1~300ml |
3(0.1~30ml) 6(30~200ml) 8(50ml~300ml) |
EP tube Microfuge tube |
