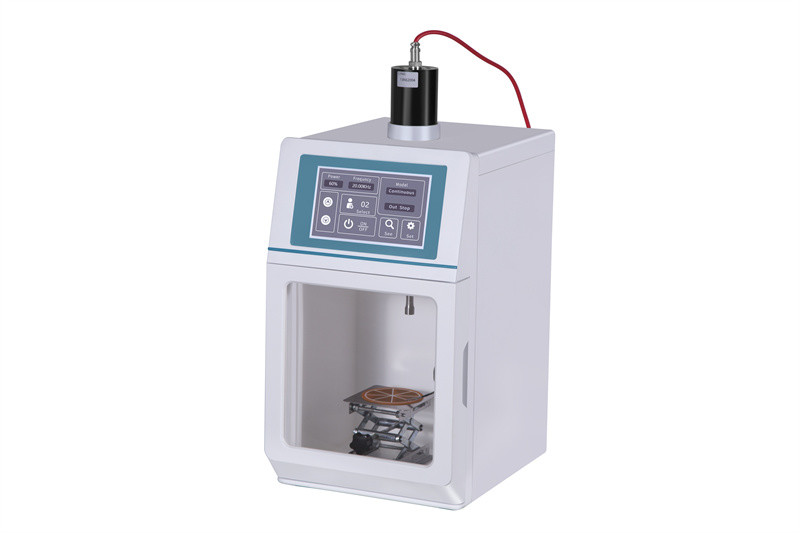

DL-300F Ultrasonic Liquid Processor For Dispersing Mixing Chemicals

DL-300F Ultrasonic Liquid Processor For Dispersing Mixing Chemicals

  • DL-300F Ultrasonic Liquid Processor For Dispersing Mixing Chemicals
  • DL-300F Ultrasonic Liquid Processor For Dispersing Mixing Chemicals
DL-300F Ultrasonic Liquid Processor For Dispersing Mixing Chemicals
Product Details:
Place of Origin: China
Brand Name: PROMED
Model Number: DL-300F
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 15-45 days after receive the payment
Payment Terms: L/C, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Power Supply: 85-260V/50-60Hz Net Power Output: 300W
Nominal Frequency: 20KHz Timer: 1Min~99H Can Be Set
Power Regulation: 1%—100%,1% Progressive Temperature Setting: 0—300℃,1℃ Progressive
Store Data: 10 Groups (Set, Store, Check In Work Status) Interval Pulse Time: 1S~60Min Can Be Set/preset
Operating Mode: Pulse、Time、Continuous LCD Display Screen: Color Touch Screen, Resolution:800×480
Operational Language: English
High Light:

Dispersing Chemicals Ultrasonic Liquid Processor


20KHz Ultrasonic Liquid Processor


Mixing Chemicals Ultrasonic Liquid Processor

DL-300F Ultrasonic Liquid Processor For Dispersing Homogenizing Mixing Chemicals

DL-300F Ultrasonic processor

Ultrasonic Processor for Dispersing, Homogenizing and Mixing Liquid Chemicals


Main Application:

Ultrasonic processor, also alias: ultrasonic cell crusher, pulverizer, extractor, disperser, homogenizer, emulsifier; it is one of the commonly used equipment for laboratory sample pretreatment; widely used in:

Composite material preparation (nano-material dispersion), life science (cell-breaking extraction and crushing),

Pharmaceutical (Chinese herbal medicine and plant extraction), environmental science (extraction of soil organic matter),

Sewage treatment (degradation of COD), homogenization and mixing (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)

main feature:

■ Automatic frequency tracking, automatic frequency sweep tracking within 20KHz frequency range;

■ Automatic energy compensation, which can automatically work at the best frequency point and output point according to the fluidity of the sample;

■ Use color industrial 7-inch touch screen control, all functions integrated display;

■ Scientific design, 10 groups of users store settings and can be directly operated on a single machine;

■ Interval pulse mode switch is independent, with three modes of continuous use, pulse, and timed continuous ultrasound;

■ Two-dimensional exponential ultrasonic probe design, which far exceeds the output efficiency of traditional probe design and reduces the loss of the horn;

■ The equipment is equipped with a temperature sensor, which can test the temperature of samples in real time;

■ Sample overload, over temperature and fault automatic alarm protection device



3. Technical Parameters

Ultrasound Main Engine Parameters

Model DL-300F
Power Supply 85-260V/50-60Hz
Net Power Output 300W
Nominal Frequency 20KHz
Timer 1Min~99H can be set
Power Regulation 1%—100%,1% progressive
Temperature Setting 0—300℃,1℃ progressive
Store Data 10 Groups (Set, Store, Check in Work Status)
Interval Pulse time 1S~60Min can be set/preset
Operating mode Pulse,Time,Continuous
LCD Display Screen Color Touch Screen, Resolution:800×480
Operational Language English
Main Interface Display Parameters Ultrasound Output Power, Frequency, Working Mode, User Group, Setting Key, Operation Status, Start/Stop, Operation Parameters
Running Interface Shows Total running time, working time, pause time, user group, overload temperature, power output ratio, working mode, program save key
Size 440x248x251mm
Soundproof box size 252x240x455mm

Parameters of Ultrasonic Probe

Standard Amplifier Aluminum Alloy Material:T1—6AL—4V
Horn Diameter 3mm
Processing Capacity 0.1-200ml
Cable Line 150cm
Ultrasonic Horn(Optional) Φ1.5,Φ2,Φ6


Packing list:

Ultrasonic probe 1
Lifting platform, anti-skid pad 1
Temperature sensor 1
The power cord 1
Cable 1
Fuse 3
Weight 12kg
