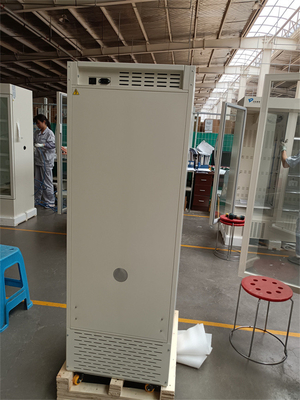

Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers

Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers

  • Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers
  • Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers
  • Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers
  • Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers
Energy Saving -40 Degrees Upright 528 Liters Medical Deep Freezer with Multi Drawers
Product Details:
Place of Origin: China
Brand Name: Mether
Certification: CE
Model Number: MDF-40V528
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1000~$2000
Packaging Details: exporting package
Delivery Time: 35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 stes/month
Contact Now
Detailed Product Description
Shelf/drawer: Shelf Cooling Method: Direct Cooling
Defrost: Manual Refrigerant: R290
Inside Material: Color Sprayed Steel Outside Material: Color Sprayed Steel
Insulation: PURF
High Light:

medical grade vaccine refrigerator

,

laboratory grade refrigerator

,

vaccine storage refrigerator freezer



Product Description



-40ºC Deep freezer



-40ºC Medical Deep Freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.
KEY FEATURES
  • Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
  • Microprocessor control, adjustable temperature range: -20°C to -40°C
  • LED digital display and increment at 0.1 °C.
  • Permanently lubricated cooling fan for safety and longevity.
  • Wide voltage band for 187V-242V.



SAFETY GUARANTEE
  • Multiple malfunction alarms to detect high and low temperature , sensor error, power failure, temperature controller malfunction
  • Two types of alarm indications: audible buzzing and visual flashing light.
BOX
  • The box is made of high quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.

TEMPERATURE CONTROL MODE
  • With the famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -25°C~-60°C.
  • High light digital display
  • High/low temperature alarm, the alarm temperature can be set as needed
  • Platinum esiance temperature sensor, sensing temperature accurately

REFRIGERATION SYSTEM
  • Imported brand compressor work with CFC-Free environmental refrigerant.
  • High density insulation foam layer with better heat preservation effect.



Product Parameters

Specificaitons Model MDF-40V528
Shelf/drawer Shelves/drawers
Cooling method Direct cooling
Defrost Manual
Refrigerant R290
Power consumption(kWh/24h) 6.7
Noise(db) 55
Ambient temperature(ºC) 10~32ºC
Temperature range(ºC) -20°~-40°C
Cooling system Compressor brand/QTY CUBIGEL/2
Condenser Copper tube
Sensor NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 340W
Current(A) 3.4A
Material Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 528/18.64
NT./GT.(kg) 151/184
Exterior size(W*D*H)(mm) 910*845*1875
Interior size(W*D*H)(mm) (651*631.5*635)*2
Package size(W*D*H)(mm) 930*970*2000
CBM 1.80
20GP/40GP/40HQ 12/ 24/24
Alarm High/low temperature Y
Power failure Y
Sensor error Y
Filter check /
Temperature controller failure Y
Low battery /
Condenser clean /
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm) 8h
Accessories Foot Y
Castor Y
Inside door 9Drawer×2
Test hole QTY/diameter 2/25MM
USB port /
Remote alarm port Y
Other Certification ISO9001,13485,14
001,CE

Production Progress

Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.

Packaging & Shipping

Packing Exporting Plywood package
Loading Port: Shanghai/ Ningbo/Hefei
Shipment Term EXW/FOB/CFR/CIF
Payment Term 100% TT Before Delivery

Company Profile

Anhui Zhongke Duling Commercial Appliance Co.Ltd is a high-tech enterprise which specialized in designing, manufacturing and marketing of laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.

We operate with 2 brands

Mether with Safety, Profession, Environmental protection
Promed with Value, Stability, Energy saving

We pursue the concept of "For a healthy world, For a healthy future" with the strong technical support from R&D team. We produce environmentally friendly products for high-end brand technical areas like research institutes, hospitals, laboratories, commercial retails with the dedication to build a green bridge for health of the humanity and the world.
