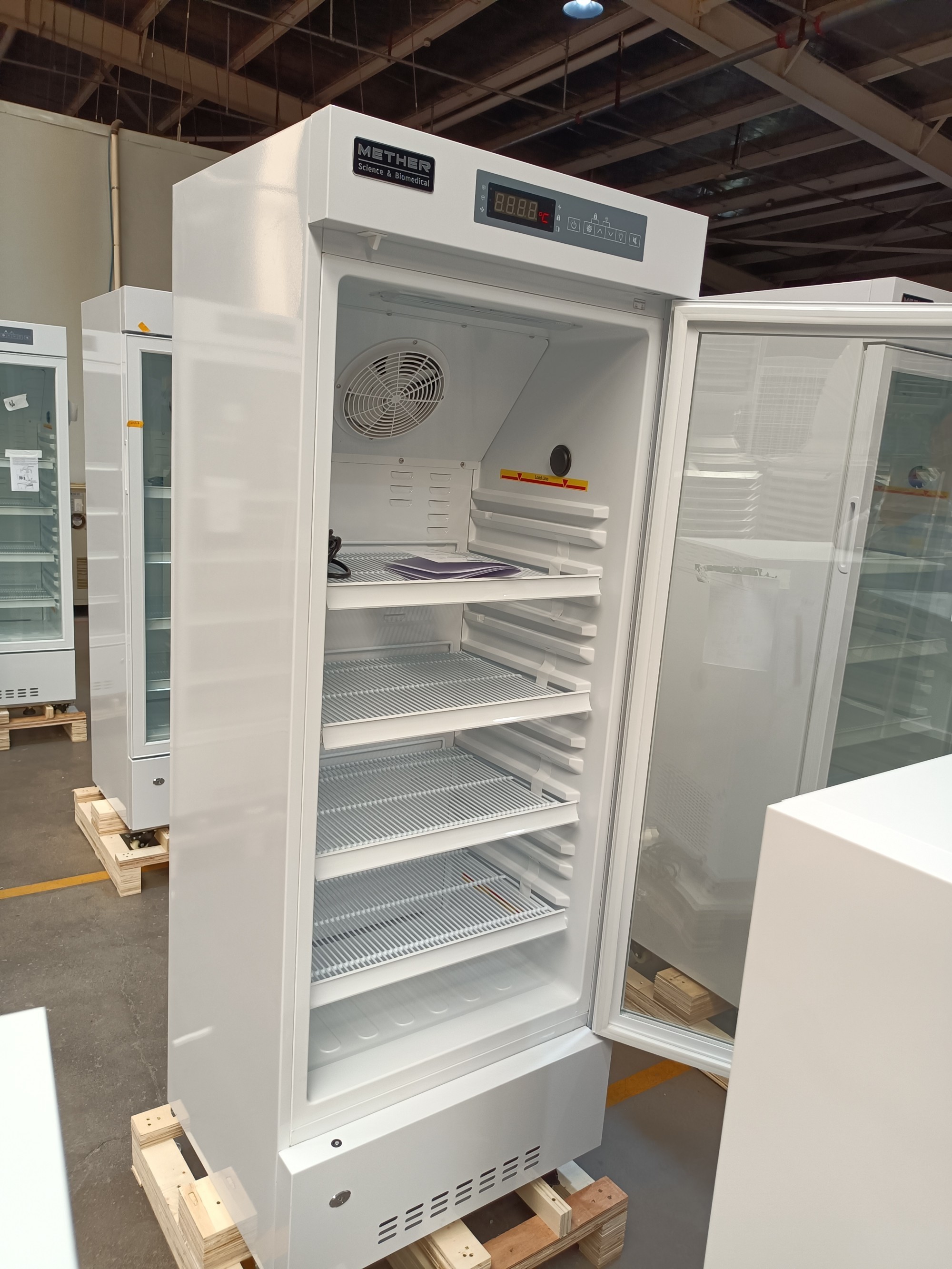

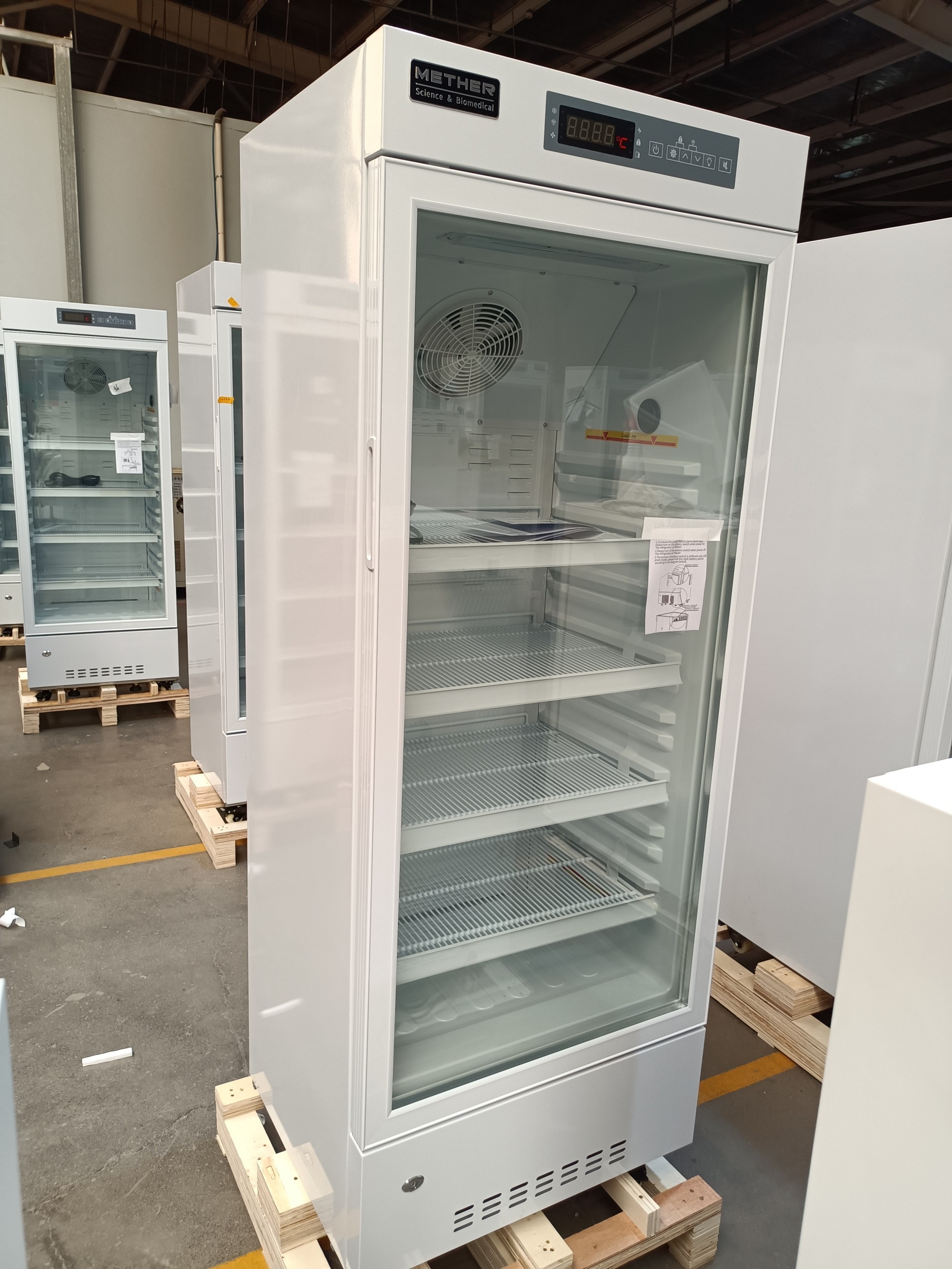

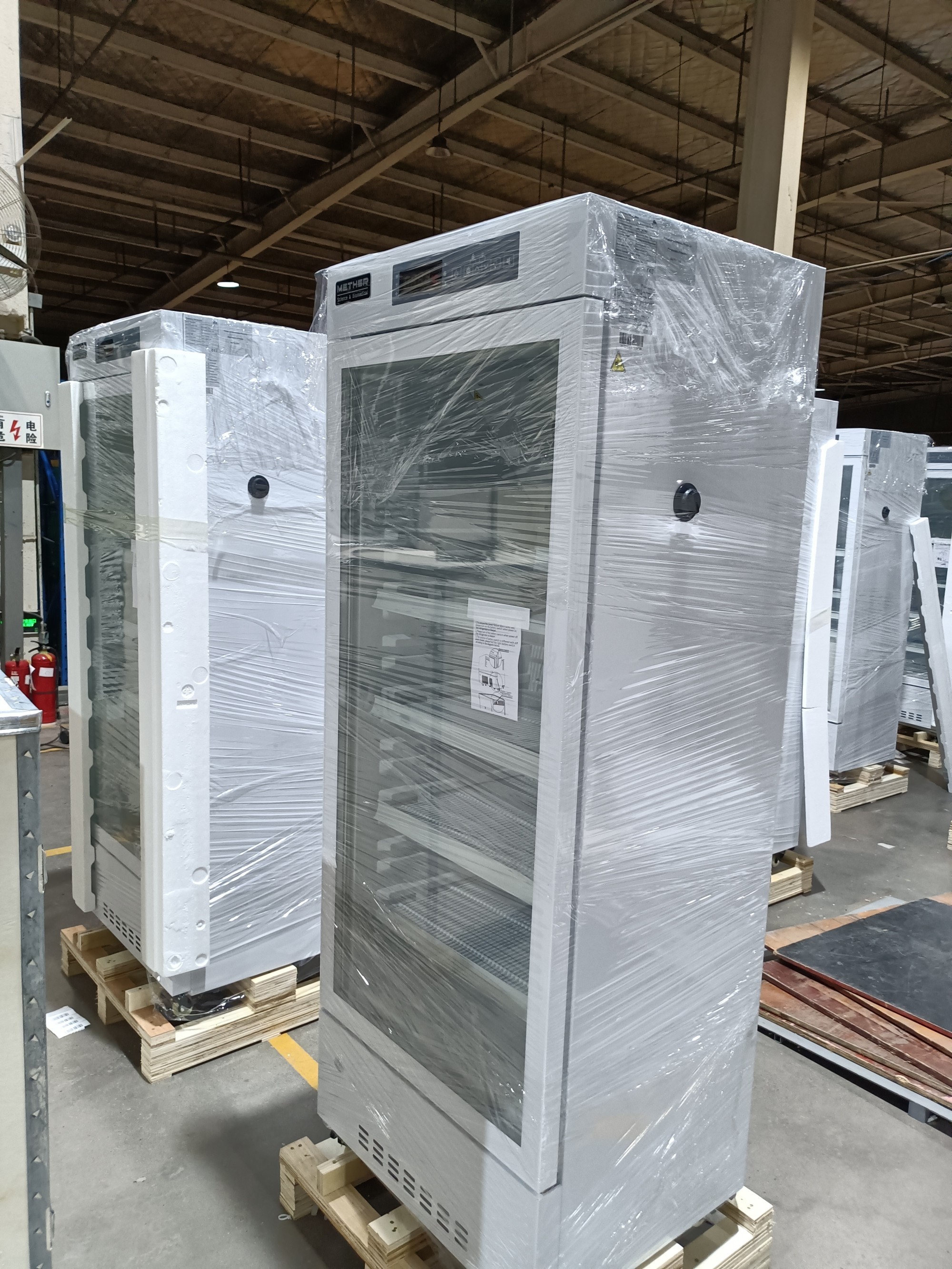

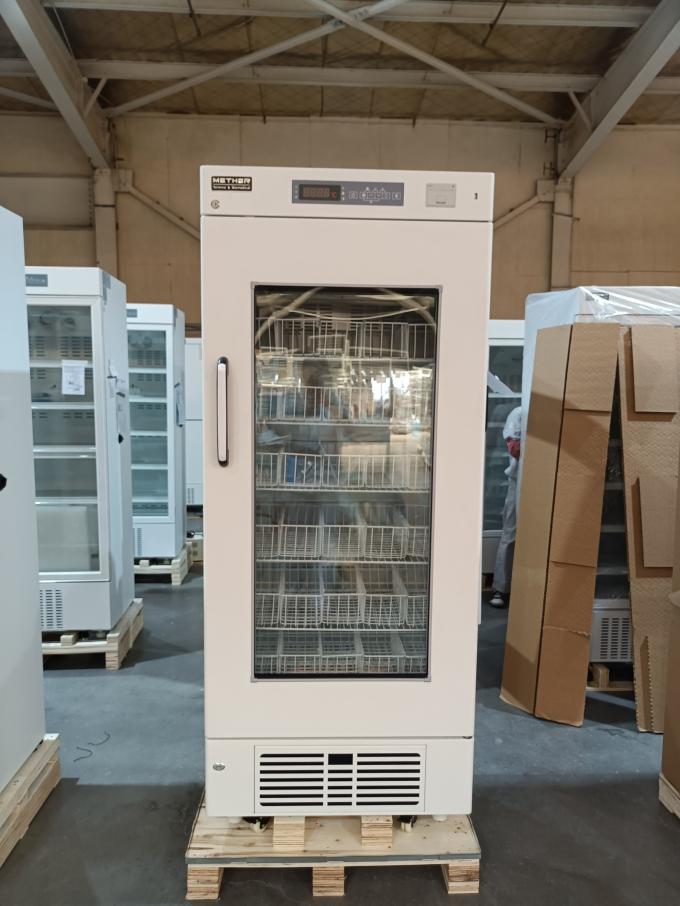

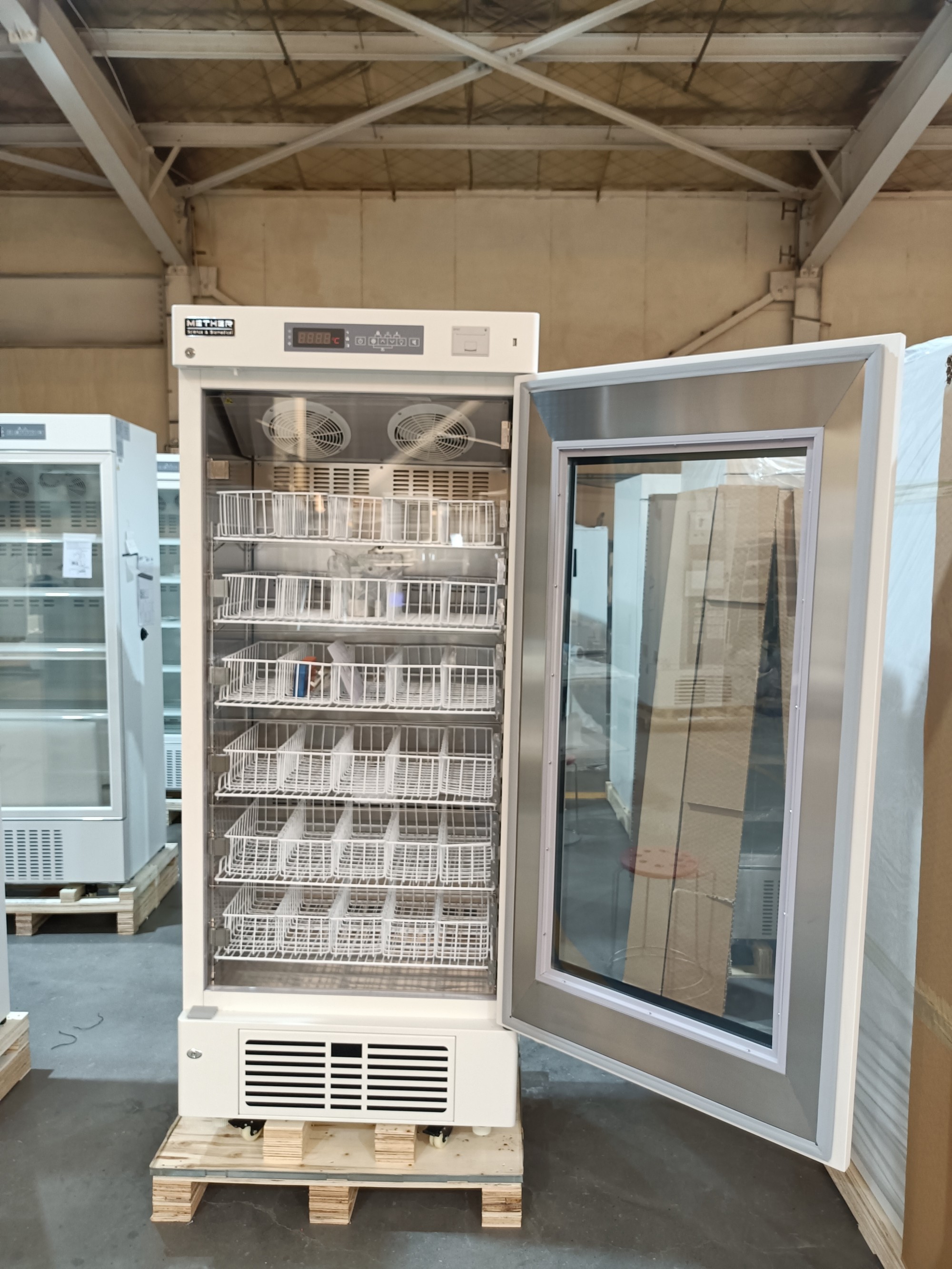

MBC-4V368 4℃ Blood Bank Refrigerator | 368L, 360 Bag Storage

MBC-4V368 4℃ Blood Bank Refrigerator (368L)

The MBC-4V368 4℃ Blood Bank Refrigerator is a professional-grade storage solution for blood banks, hospitals, and research facilities. With an effective capacity of 368 liters, it securely stores up to 360 units of 450ml blood bags. Its advanced refrigeration system ensures precise temperature control at 4±0.5℃, safeguarding the quality and integrity of whole blood and blood components.

Key Features

• Temperature Accuracy: Maintains stable 4±0.5℃ with high-precision dual sensor system

• Fast Cooling: Real forced-air circulation with large fans for rapid pull-down and uniform chamber distribution

• Comprehensive Safety: 5 alarm functions (high/low temperature, door ajar, power failure, controller malfunction, system fault) with both audible and visual alerts

• Optimized Storage: Adjustable stainless-steel shelves, detachable baskets, acrylic inner doors, and heated foamed glass door

• Durable Construction: Built with SUS 304 stainless steel, antibacterial and corrosion-resistant, equipped with heavy-duty lockable castors and leveling feet

• Data & Traceability: Integrated thermal printer and USB interface for secure recording and export of temperature data

• Eco-Friendly Design: CFC-free refrigerant and energy-saving operation

HOT TIPS

• Large storage capacity 66*450ml blood bags
• Individual Arcylic inner doors
• blood bags Reliable control system 4±1°C
• Forced-air cooling system, frost-free
• Build-in back-up battery: 72 hours power failure alarm
• Wide voltage range, 187V~242V available
• 5 visual and audible alarms

Features

• Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C
• Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity
• Three layer toughened glass door with heater to avoid condensation
• 304 stainless steel inner chamber for friendly using and easy cleaning
• Wide available voltage range: 187V~242V

SAFETY GUARANTEE

• Safety door lock and controller setting password to prevent unauthorized access
• Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power
• Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening
• Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
• Power failure protection: turn on delay of the cooling system after power failure
• Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed
• Temperature printer: print current inside temperature automatically per 10 minutes

Humanized design

• 4 casters with stopper for easy moving and fixation
• 4 adjustable shelves and 12 blood baskets for easy using
• Special designed service-free drainage system ensure no water in the cabinet
• Standard 25mm test hole for easy connecting to temperature monitoring systems
• Automatic on/off LED light with manual switch on control panel



REFRIGERATION SYSTEM

• Imported brand compressor work with CFC-Free environmental refrigerant.
• High density insulation foam layer with better heat preservation effect.

	Model	MBC-4V368
Specificaitons	Shelf/drawer	Shelves/4
	Cooling	Forced -air Cooling
	Defrost	Auto
	Refrigerant	R134a
	Power consumption(kWh/24h)	4.28
	Noise(db)	51.2 dB(A)
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	4±1ºC
Cooling system	Compressor brand/QTY	EMBRACO/1
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	325
	Current(A)	2.2A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	368/12.98
	Bloodbags(450ml)	200
	NT./GT.(kg)	128/135
	Exterior size(W*D*H)(mm)	785×565×1920
	Interior size(W*D*H)(mm)	685×429×1380
	Package size(W*D*H)(mm)	890×650×2100
	CBM	1.21
	20GP/40GP/40HQ	21/44/44
Alarm	High/low temperature	Y
	Power off	Y
	Temperature controller malfunction	Y
	Backup battery malfunction	Y
	Ambient temperature	10~32ºC
	Power failure backup system(alarm)	8h
Accessories	Caster	Y
	Outer door/Type	1/Heating & Foam glass door
	Inner door
	Test hole	1/25MM
	Thermal Printer	Y
	Light	LED
	Temperature recorder	Optional
Other	Qualifications	ISO9001,ISO13485,ISO14002,CE

Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.
