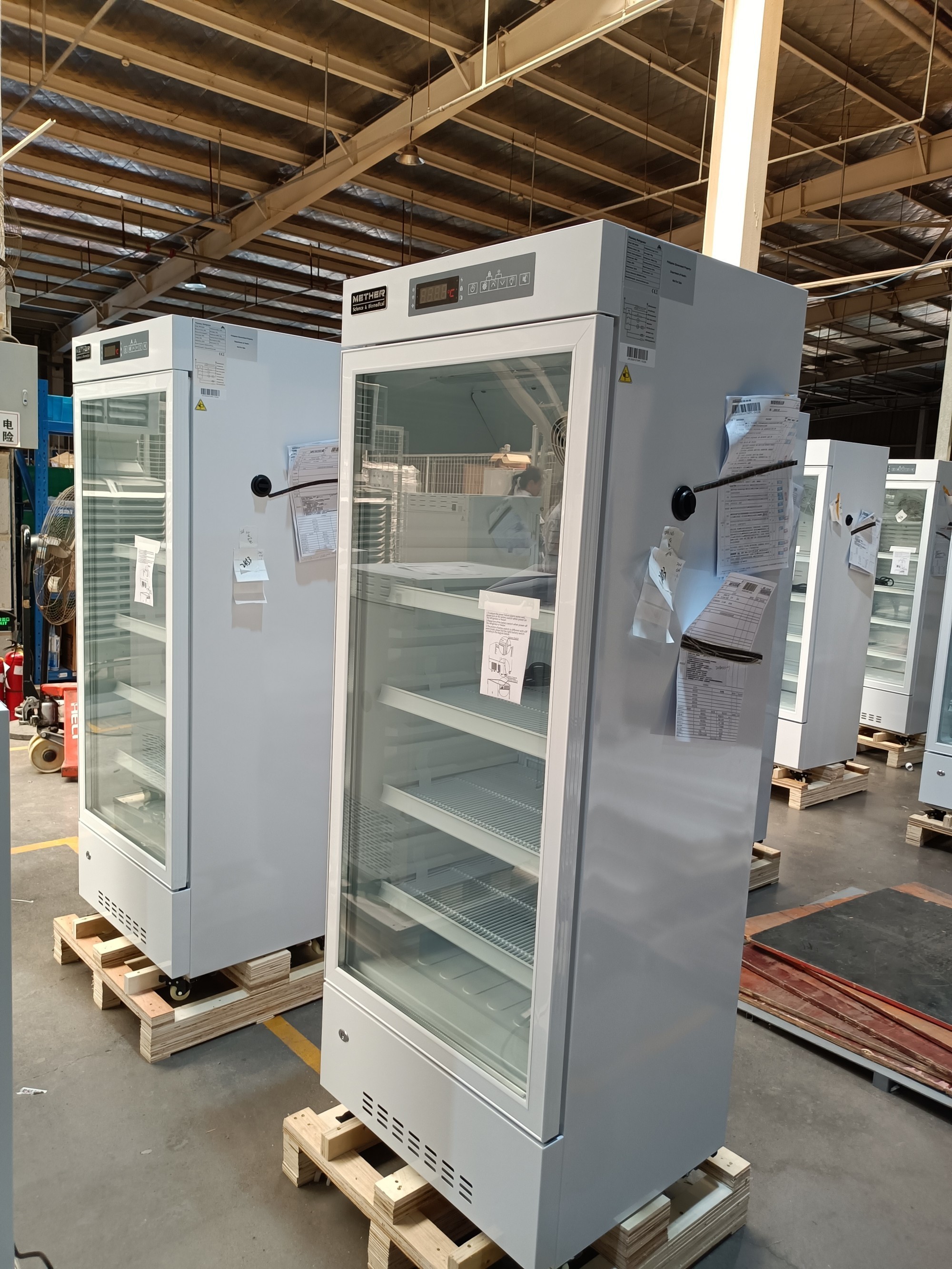

MBC-4V368 4℃ Blood Bank Refrigerator | 368L, 360 Bag Storage

MBC-4V368 4℃ Blood Bank Refrigerator (368L)

The MBC-4V368 Blood Bank Refrigerator is designed for reliable storage of whole blood and blood components. With a large 368-liter chamber and capacity for 360 units of 450ml blood bags, it maintains precise temperature stability at 4±0.5℃ to ensure safety and integrity of stored samples.

Key Features

• Stable Temperature Control: Maintains 4±0.5℃ with dual temperature sensors

• Rapid Cooling System: Real forced-air circulation with high-power fans for fast pull-down and uniform distribution

• Comprehensive Alarms: 5 types of audible and visual alarms (high/low temperature, door ajar, power failure, controller fault, system error)

• Flexible Storage: Adjustable shelves, detachable baskets, acrylic inner doors, and heated foamed glass door

• Durable Construction: SUS 304 stainless steel, antibacterial and corrosion-resistant; lockable heavy-duty castors and leveling feet

• Data Recording: Built-in thermal printer and USB interface for accurate tracking and export

• Eco-Friendly: CFC-free refrigerant, designed for energy efficiency

HOT TIPS

• Large storage capacity 66*450ml blood bags
• Individual Arcylic inner doors
• blood bags Reliable control system 4±1°C
• Forced-air cooling system, frost-free
• Build-in back-up battery: 72 hours power failure alarm
• Wide voltage range, 187V~242V available
• 5 visual and audible alarms

Features

• Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C
• Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity
• Three layer toughened glass door with heater to avoid condensation
• 304 stainless steel inner chamber for friendly using and easy cleaning
• Wide available voltage range: 187V~242V

SAFETY GUARANTEE

• Safety door lock and controller setting password to prevent unauthorized access
• Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power
• Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening
• Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
• Power failure protection: turn on delay of the cooling system after power failure
• Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed
• Temperature printer: print current inside temperature automatically per 10 minutes

Humanized design

• 4 casters with stopper for easy moving and fixation
• 4 adjustable shelves and 12 blood baskets for easy using
• Special designed service-free drainage system ensure no water in the cabinet
• Standard 25mm test hole for easy connecting to temperature monitoring systems
• Automatic on/off LED light with manual switch on control panel



REFRIGERATION SYSTEM

• Imported brand compressor work with CFC-Free environmental refrigerant.
• High density insulation foam layer with better heat preservation effect.

	Model	MBC-4V368
Specificaitons	Shelf/drawer	Shelves/4
	Cooling	Forced -air Cooling
	Defrost	Auto
	Refrigerant	R134a
	Power consumption(kWh/24h)	4.28
	Noise(db)	51.2 dB(A)
	Ambient temperature(ºC)	10~32ºC
	Temperature range(ºC)	4±1ºC
Cooling system	Compressor brand/QTY	EMBRACO/1
	Sensor	NTC
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	325
	Current(A)	2.2A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	368/12.98
	Bloodbags(450ml)	200
	NT./GT.(kg)	128/135
	Exterior size(W*D*H)(mm)	785×565×1920
	Interior size(W*D*H)(mm)	685×429×1380
	Package size(W*D*H)(mm)	890×650×2100
	CBM	1.21
	20GP/40GP/40HQ	21/44/44
Alarm	High/low temperature	Y
	Power off	Y
	Temperature controller malfunction	Y
	Backup battery malfunction	Y
	Ambient temperature	10~32ºC
	Power failure backup system(alarm)	8h
Accessories	Caster	Y
	Outer door/Type	1/Heating & Foam glass door
	Inner door
	Test hole	1/25MM
	Thermal Printer	Y
	Light	LED
	Temperature recorder	Optional
Other	Qualifications	ISO9001,ISO13485,ISO14002,CE

Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.
