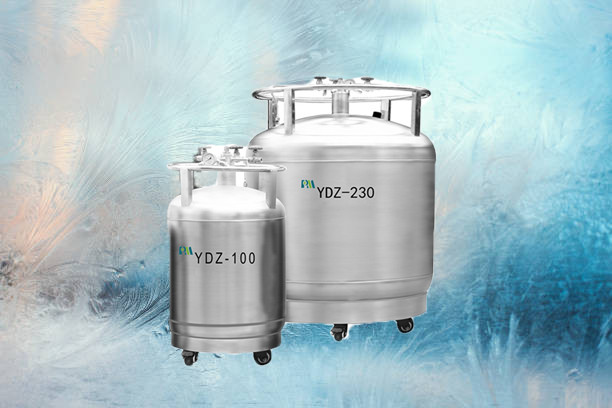

Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized

Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized

  • Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
  • Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
  • Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
  • Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
  • Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
  • Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized
Product Details:
Place of Origin: Anhui Province, Hefei City
Brand Name: PROMED
Certification: CE,UL
Model Number: YDZ-230
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 14-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 unit/month
Contact Now
Detailed Product Description
Capacity: 250L Type: Liquid Phase
Material: Stainless Steel Effective Volume(L): 230L
Outer Diameter(mm): 656 Height(mm): 1400
N.W(kg): 140
High Light:

Self Pressurized liquid nitrogen vessel

,

250L Liquid Nitrogen Vessel

,

250L Liquid Nitrogen Cylinder

Self-pressurized Liquid Nitrogen Supply Cylinder Tank Container Vessel For LN2 Tank

The self-pressuried LN2 Tanks Series are used for transporting and storing low temperature liquid nitrogen, and are high performance storage containers for low temperature liquid nitrogen media, manufactured from high quality stainless steel. The self-pressurized LN2 tank series consist of a control structure and a tank body. The control components are mainly inlet(discharge)valves, emptying valves, pressurisation valves, safety valves, level gauges, pressure gauges and castors. All models in this series are equipped with four mobile universal castors to facilitate the use and movement of the containers in different places.They are currently widely used in industries and fields such as the mould industry, animalhusbandry, pharmaceuticals, semiconductors, food, aerospace, military and cryogenic chemicals.


PRODUCT FEATURES



Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized 0

Unique Polishing Stainless Steel Tank Polishing

Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized 1

Easy To Move With Universal Castors

Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized 2

5 Year Vacuum Warranty

Stainless Steel 250L Liquid Nitrogen Vessel Self Pressurized 3

Optional Intelligent Monitoring System For Remote Monitoring

SPECIFICATIONS





Model
YDZ-50
YDZ-100
YDZ-200
YDZ-230

Capacity(L)

55 110 220 250

Effective Volume(L)

50 100 200 230

Outer Diameter(mm)

455 556 656 656

Height(mm)

960 1100 1300 1400

N.W(kg)

50 68 125 140

Calibre(mm)

50 50 50 50

Static LN2 Daily Evaporation Rate(%)

2 1.2 1 1

Standard Working Pressure(Mpa)

0.05 0.05 0.05 0.05

Maximum Working Pressure(Mpa)

0.09 0.09 0.09 0.09

Volume of Infusion(L/min)

>5L/Min N5L/Min >10L/Min >10L/Min

Primary Safety Valve Opening Pressure(Mpa)

0.099 0.099 0.099 0.099

Sceondary Safety Valve Opening Pressure (Mpa)

0.15 0.15 0.15 0.15

Rupture Dis Bursting Pressure(Mpa)

- - 0.35 0.35

Pressure Gauge Indication Range(Mpa)

0~0.25 0~0.25 0~0.25 0~0.25
