Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf

Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf

  • Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf
  • Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf
  • Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf
  • Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf
Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf
Product Details:
Place of Origin: AnHui Province HeFei city China
Brand Name: METHER
Certification: CE
Model Number: MDF-86V588N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4900 - $5100 per set
Packaging Details: Package size(W*D*H)(mm):975*1140*2200
Delivery Time: 35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000unit/month
Contact Now
Detailed Product Description
Shelf/drawer QTY: Stainless Steel Shelf/3 Noise(db): 53
Ambient Temperature(℃): 10~32℃ Temperature Range(℃): -40~-86℃
Display: LCD Display Interior Size(W*D*H)(mm): 606*738*1310
Exterior Size(W*D*H)(mm): 880*1080*2000 Cooling: Direct Cooling
Samples(2ml): 40000 Abnormal Voltage: Y
Power Failure Backup System(alarm): 72h Test Hole QTY/diameter: 1/25MM
Remote Alarm Port: Y
High Light:

Stainless Steel Shelf Vaccine Refrigerator

,

ULT Vaccine Refrigerator

,

Direct Cooling Vaccine Refrigerator



Environment friendly Energy saving Ultra Low Temperature vaccine refrigeratormanufacturer -86 degree for hospital




1. Description

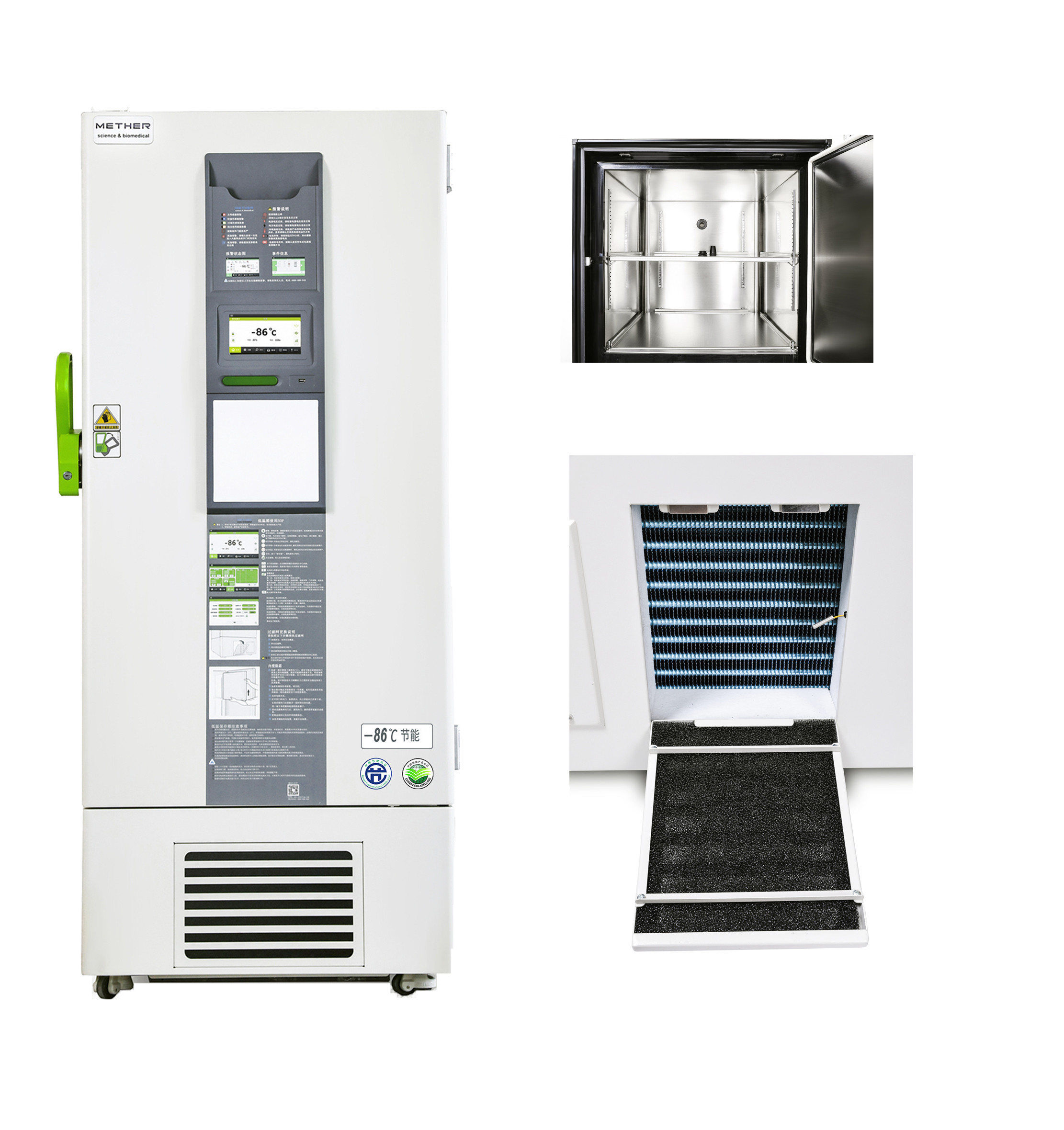

-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis.



Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf 0

Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf 1





FILED PROVEN RELIABILITY

  • Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
  • Specialized control system design for a well-balanced operation of dual refrigeration system.
  • Positive filed proven reliability record.

SAFETY

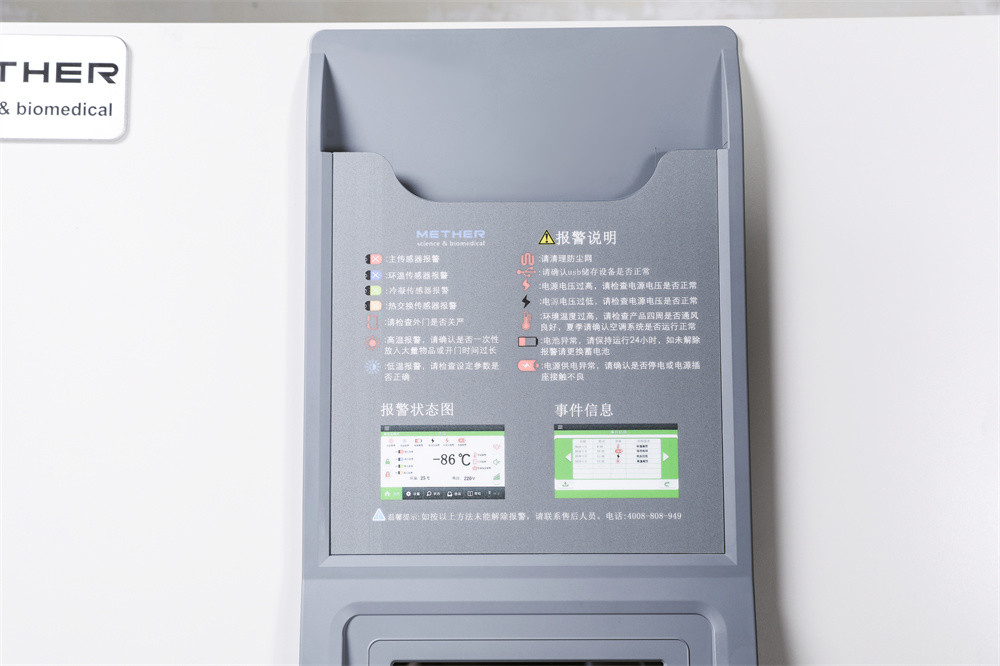

  • Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
  • Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
  • Door open feature standard and USB port for temperature date downloading standard on upright models.
  • Remote alarm contacts.

ENERGY SAVING

  • Unique door seal design for the minimum loss of cold temperature during a door opening.
  • High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
  • HC refrigerant with better efficiency and less energy cost.

KEY DESIGN FEATURES

  • Microprocessor-controlled system designed for range of -40°C to -86°C for cabinet space with 1°C increment.
  • Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
  • Optional temperature recorder, storage racks and box.

INSTALLATION AND APPLICATION

  • Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition
  • Suitable for 10°C to 32°Cambient temperature.

CO2 & LN2 BACKUP SYSTEM

  • Independent equipment CO2 back up system, LN2 back up system a backup refrigeration system for Ultra-Low Temperature Freezer failures and power outages.
  • The backup refrigeration system consists of a control system and a supply connection System.
  • Adjust the solenoid Valve's On-off according to its own temperature control probe.A liquid nitrogen tank or liquid carbon dioxide tank that is connected by a solenoid valve as a Reserve.
  • The solenoid valve is powered by an internal rechargeable battery.

Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf 2

Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf 3





Model MDF-86V588N
Shelf/drawer QTY Stainless steel shelf/3
Cooling Direct cooling
Defrost Manual
Refrigerant HC
Power Consumption(kWh/24h) 12
Noise(db) 53
Ambient temperature(℃) 10~32
Temperature range(℃) -40~-86
Compressor brand/QTY SECOP/2
Sensor PTC
Temperature controller Microprocessor

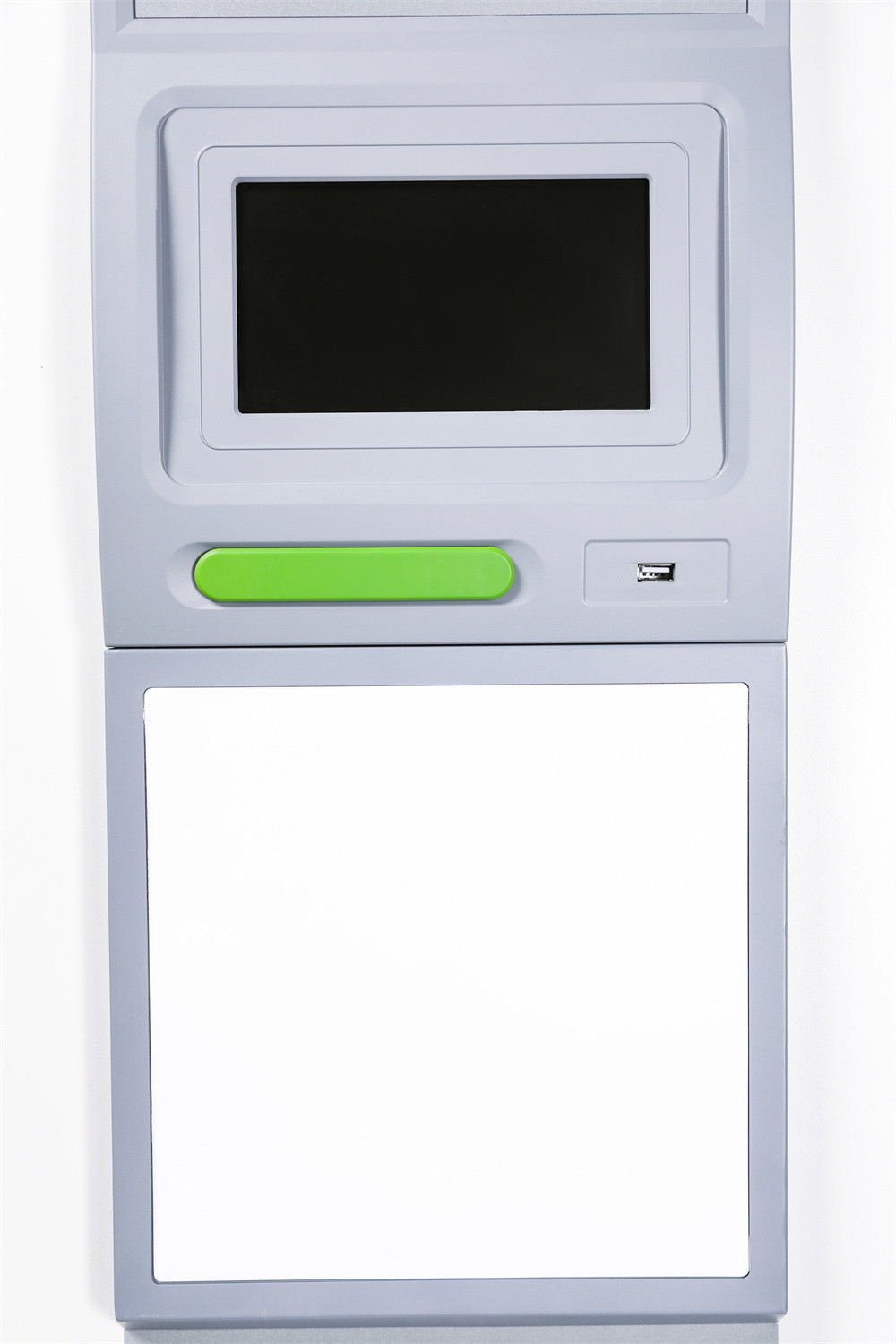

Display LCD display
Voltage/frequency(V/Hz) 220/50Hz
Power(W) 815W
Current(A) 7A
Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Capacity(L/cu.ft) 588/20.76
NT./GT.(kg) 307/368
Exterior size(W*D*H)(mm) 880*1080*2000
Interior size(W*D*H)(mm) 606*738*1310
Package size(W*D*H)(mm) 975*1140*2200
CBM 2.45
20GP/40GP/40HQ 12/24/ 24
Racks 16(5X5)
Boxes (2 Inches) 400
Samples(2ml) 40000
High/low temperature Y
Power failure Y
Abnormal voltage Y
Sensor error Y
Filter screen check Y
Thermostat failure Y
Low battery Y
Condenser clean Y
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm) 72h
Castor Y
Inside door 2
Test hole QTY/diameter 1/25MM
USB port Y
Chart recorder Optional
Data logger Optional
Remote alarm port Y
CO2 back up system Optional
LN2 back up system Optional
Certification CE



Energy Saving ULT Vaccine Refrigerator With Stainless Steel Shelf 4



N series medical-grade refrigerators from Mether technology. Designed for long term storage of various biological,including viruses ,germs,vacainne, N series freezer offer optimal temperature management along with decreased energy use. This can help facilities reduce their utility bills, lowering the total cost of ownership.
