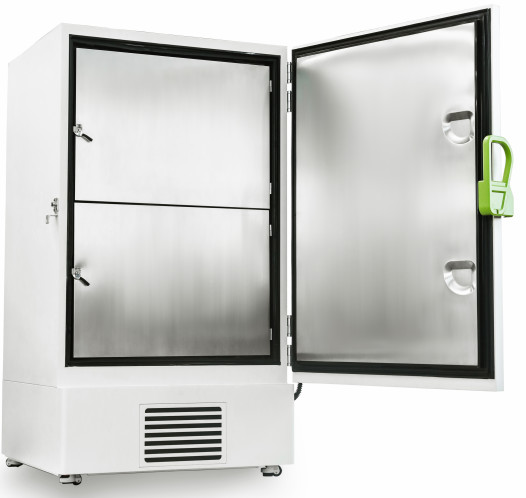

Ultra Low Temperature Freezer With 728 Liters Capacity
ULT Vaccine Storage Laboratory Upright Freezer
728L Stainless Steel -86 ULT Vaccine Storage Laboratory Equipment
-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.
Model | MDF-86V728D | |
Specificaitons | Shelf/drawer QTY | Stainless steel shelf/3 |
Cooling | Direct cooling | |
Defrost | Manual | |
Refrigerant | Mixed-gas | |
Power Consumption(kWh/24h) | ||
Noise(db) | 53 | |
Ambient temperature(ºC) | 10~32ºC | |
Temperature range(ºC) | -40~-86ºC | |
Cooling system | Compressor brand/QTY | SECOP/2 |
Sensor | PTC | |
Temperature controller | Microprocessor | |
Display | LCD display | |
Power | Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | ||
Current(A) | ||
Material | Inside material | Stainless steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Size | Capacity(L/cu.ft) | 728 |
NT./GT.(kg) | 360/401.5 | |
Exterior size(W*D*H)(mm) | 1260*890*2010 | |
Interior size(W*D*H)(mm) | 963*558*1350 | |
Package size(W*D*H)(mm) | 1320*970*2190 | |
CBM | 2.8 | |
20GP/40GP/40HQ | 2.80 | |
Frozen Racks | Racks | 8/18/18 |
Boxes (2 Inches) | 504 | |
Samples(2ml) | 50400 | |
Alarm | High/low temperature | Y |
Power failure | Y | |
Abnormal voltage | Y | |
Sensor error | Y | |
Filter screen check | Y | |
Thermostat failure | Y | |
Low battery | Y | |
Condenser clean | Y | |
High ambient temperature | Y | |
Door ajar | Y | |
Power failure backup system(alarm) | 73h | |
Accessories | Castor | Y |
Inside door | 2 | |
Test hole QTY/diameter | 1/25MM | |
USB port | Y | |
Chart recorder | / | |
Data logger | Optional | |
Remote alarm port | Y | |
Optional | CO2 back up system | Optional |
LN2 back up system | Optional | |
Other | Certification | ISO.CE |
Anhui Zhongke Duling Commercial Appliance Co.Ltd is a direct sourcing manufacturer with core technology.
Packing | Exporting Plywood package |
20GP/40GP/40HQ | 12/24/24 Sets |
Loading Port: | Shanghai/ Ningbo/Hefei |
Shipment Term | EXW/FOB/CFR/CIF |
Payment Term | 100% TT Before Delivery |
