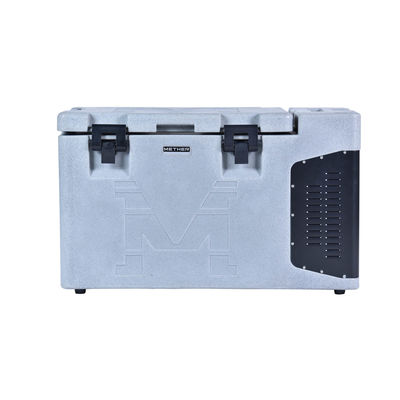

Vaccine Storage Portable Fridge Freezer , 80L Vaccine Transport Cooler Box
PRODUCTION DESCRIPTION
MDF-25H80LC -25/4/22 ℃ Portable Vaccine Storage Electric Control Transport Cooler For Hospitals
The fridges have below multi-function:
| 2-8℃ Range |
Can be used as Pharmacy Refrigerators |
| -10~-25 ℃ Range |
Can be used as Deep Freezer |
| 22+-2 ℃ Range |
Can be used as Incubator |
The medical mobile cooler are widely used to store and transport blood, serum, plasma, vaccine, reagents and special medicines for epidemic prevention station, blood bank, health center and pharmaceuticals company.
Specification
| Model |
MDF-25H80LC |
| Specificaitons |
| shelves/basket |
Basket around Evaporator |
| Cooling method |
Forced Air Cooling |
| Defrost |
Manual |
| Refrigerant |
R134a |
| Power consumption(kWh/24h) |
1.6 |
| Noise(db) |
46 |
| Ambient temperature(℃) |
10~32℃ |
| Temperature range(℃) |
·-25/4/22 |
| |
| Cooling system |
| Compressor brand/QTY |
China Brand/1 |
| Sensor |
NTC |
| Temperature controller |
Microprocessor |
| Display |
Digital display |
| Power |
| Voltage/frequency(V/Hz) |
220/50Hz,DC12V/24V |
| Power(W) |
100W |
| Current(A) |
DC8A |
| Material |
| Inside material |
PE |
| Outside material |
PE |
| Insulation |
PURF |
| Dimensions |
| Capacity(L/cu.ft) |
80/2.825 |
| NT./GT.(kg) |
50/51 |
| Exterior size(W*D*H)(mm) |
930*580*570 |
| Interior size(W*D*H)(mm) |
547*378*369.5 |
| Package size(W*D*H)(mm) |
990*650*640 |
| CBM |
0.41 |
| 20GP/40GP/40HQ |
54/108/144 |
| Alarm Systerm |
| High/low temperature |
Y |
| Power failure |
Y |
| Sensor error |
Y |
| Thermostat failure |
Y |
| Power failure backup system(alarm) |
8h |
| Accessories |
| Remote alarm port |
Optional |
| Certification |
ISO9001,13485,14001,CE |
|
If Voltage/frequencyV/Hz is 220/50Hz,DC12V/24V, also can choose other transportation
|
 |
Main Points
- Combined with forced air cooling systerm and direct cooling systerm
- High efficiency air cooling system to ensure good temperature uniformity.
- Temperature range: +30°C, +4°C, -25°C
- Auto switch cooling and heating system to ensure the inside temperature in all climatic conditions.
- Wide voltage design, able to be used when the voltage is between 187V~242V AC and 12V/24V DC.
- Accurate temperature control, the temperature accuracy is 0.1°C.
- Integrated and strong PE body to resist impact and corrosion.
- Smooth and flat surface for easy cleaning.
Safety :
- Built-in protective basket to prevent the samples being frozen off by evaporator.
- PC lock for easy operation and good appearance.
- Two power ports for AC/DC connection.
- Equipped with protective fuse to avoid the destruction caused by overcurrent.
- Able to be stacked, saving space.
Packing and Delivery
| Packing method |
Carton packing with strong belt |
| Package size(W*D*H)(mm): |
990*650*640 |
| Payment Term |
100% TT before delivery |
| Loading Port |
Shanghai/Ningbo or other Main port of China |
| 20GP/40GP/40HQ |
54/108/144 pieces |
Compamy Information
Anhui Zhongke Duling Commercial Appliance Co.ltd is a high-tech enterprise which specialized in designing,developing and manufacturing medical Freezers more than 10 years, like ultra-low temperature freezers,deep freezers,blood platelet incubators and customized medical freezers, widely used in laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.
Our factory locates in Hefei city, Anhui province, China which is near Shanghai and Ningbo port, Annual output is around 10,000 sets Refrigerators.
