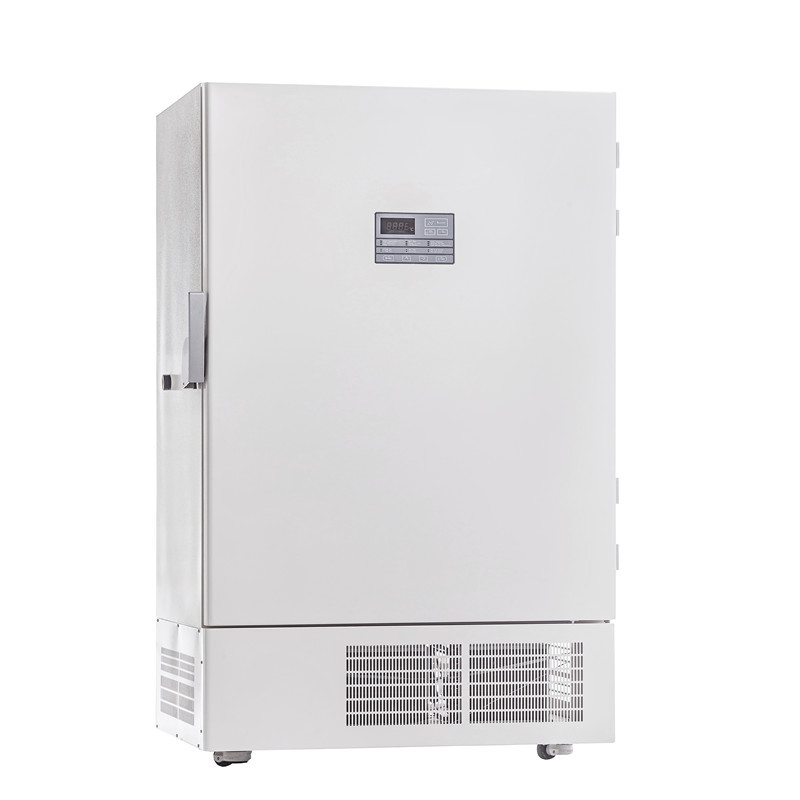

936L Largest Capacity Standing Medical Deep Freezer Energy Saving Minus 40 Degree

Energy Saving And Digital Disply Secure Medical Grade Freezer 936 Liter To Store Medicine Drugs

	Model	MDF-40V936
	Dimensions
	Capacity(L/cu.ft)	936/33.05
	NT./GT.(kg)	372/416
	Exterior size(W*D*H)(mm)	1320*980*2100
	Interior size(W*D*H)(mm)	1000*700*1335
	Package size(W*D*H)(mm)	1360*1135*2170
	CBM	3.35
	20GP/40GP/40HQ	8/16/16
	Alarm Systerm
	High/low temperature	Y
	Power failure	Y
	Sensor error	Y
	Filter check	Y
	Temperature controller failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	72h
	Spare Parts
	Foot	/
	Castor	Y
	Inside door	Y
	Test hole QTY/diameter	1/18MM
	USB port	Y
	Remote alarm port	Y

	Specificaitons
	Shelf/drawer	Shelves
	Cooling method	Direct cooling
	Defrost	Manual
	Refrigerant	R404A
	Power consumption(kWh/24h)	14.5
	Noise(db)	50
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	-25~-40℃
	Cooling system
	Compressor brand/QTY	SECOP/2
	Condenser	Copper tube and finned
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
	Power Systerm
	Voltage/frequency(V/Hz)	220/50Hz
	Power(W)	1000W
	Current(A)	5.8A
	Material
	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF

Key Features

• -LED digital display and accurate to 0.1ºC

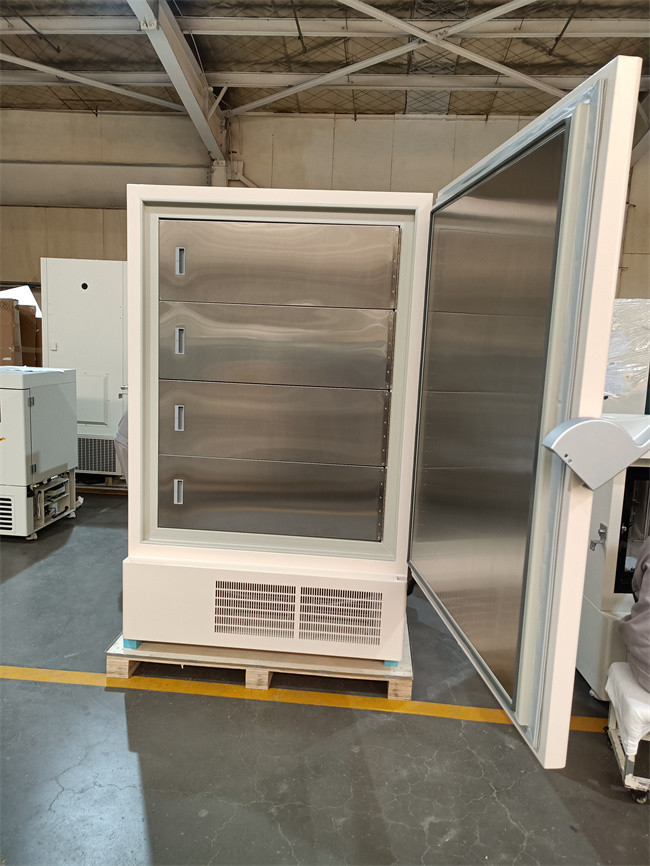

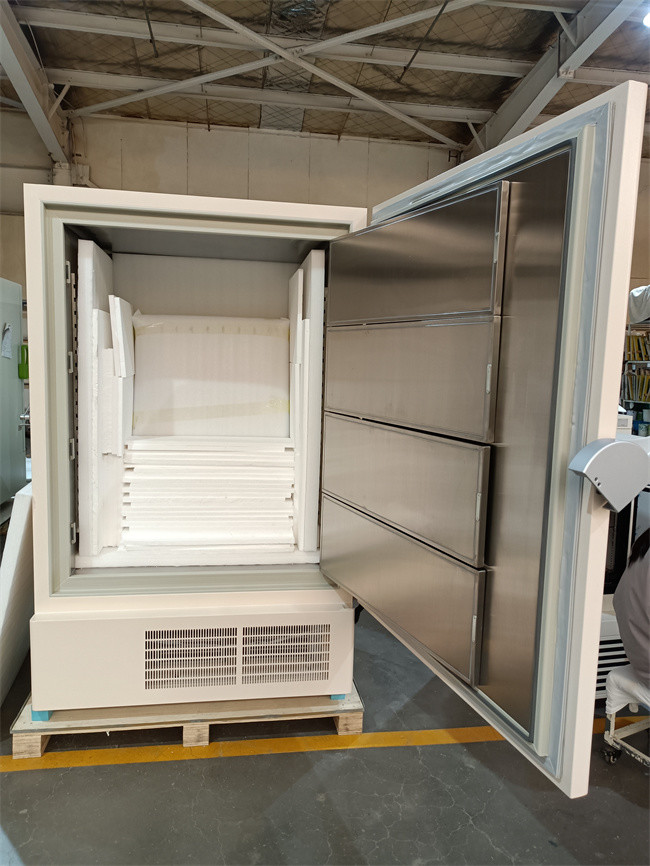

• -Independent inner door to decrease the cooling leaking out, and provide more stable inside temperature performance
• -High density CFC-Free urethane foam insulation.

Reliability

• -Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
• -Microprocessor control, digital display, adjustable temperature range: - 30ºC--40ºC
• -LED digital display for clear observation,
• -Wide voltage tolerance design with applicable voltage range of 187-242V/AC

Safety

• -Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
• -Two types of alarm indications: audible buzzing and visual flashing light.
• -Corrosion proof cabinet interior design
• -Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage

Carton packing with strong belt Package size(W*D*H)(mm): 750*760*2030

20GP/40GP/40HQ 21/45/45 pieces
