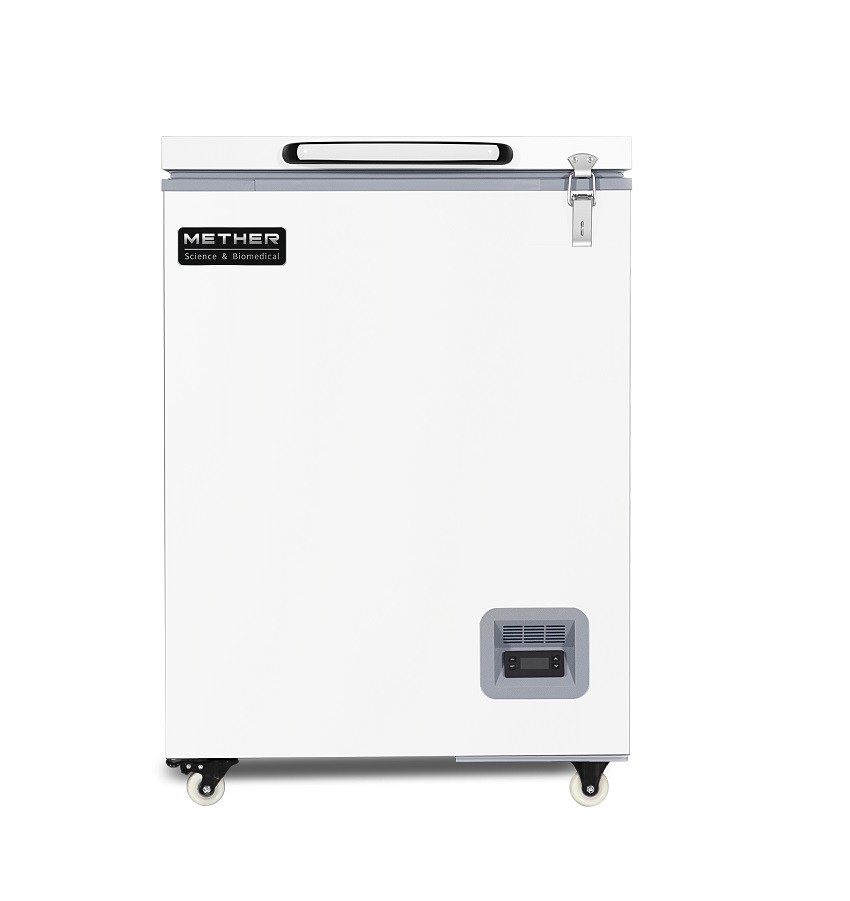

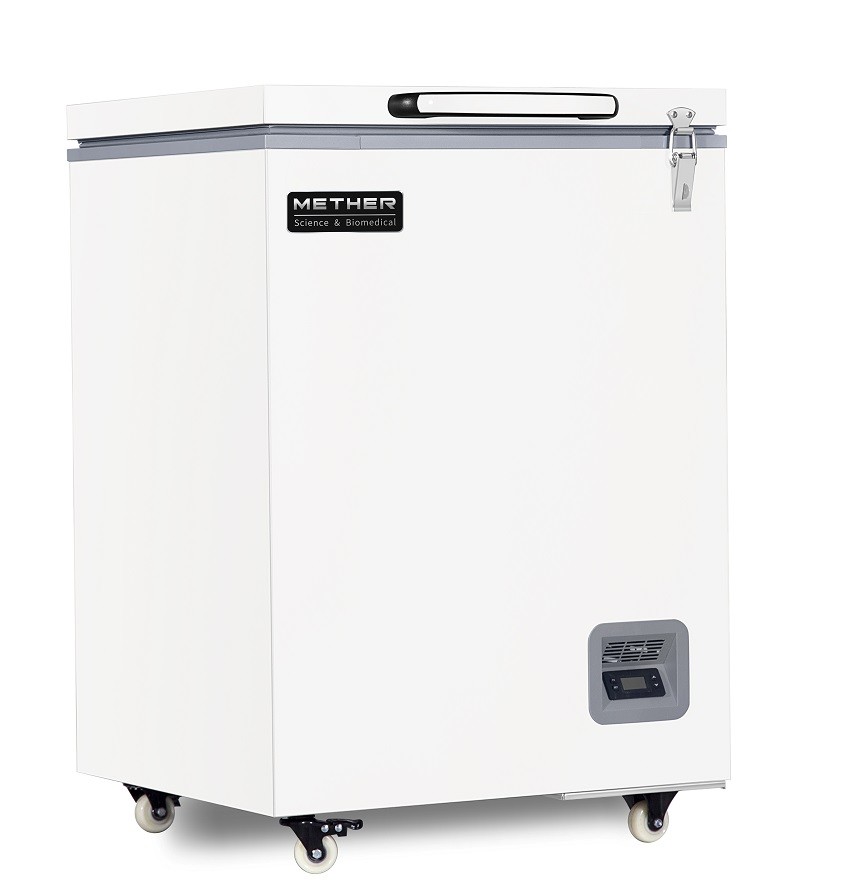

-86C Ultra Low Temperature Chest Freezer For Vaccine

-86C Ultra Low Temperature Chest Freezer For Vaccine

  • -86C Ultra Low Temperature Chest Freezer For Vaccine
  • -86C Ultra Low Temperature Chest Freezer For Vaccine
  • -86C Ultra Low Temperature Chest Freezer For Vaccine
-86C Ultra Low Temperature Chest Freezer For Vaccine
Product Details:
Place of Origin: China
Brand Name: PROMED
Certification: CE FDA ISO
Model Number: MDF-86H105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 15-45 days after receive the payment
Payment Terms: L/C, T/T
Supply Ability: 500 units per month
Contact Now
Detailed Product Description
Cooling: Direct Cooling Refrigerant: Mixed-gas
Power Consumption(kWh/24h): 3.8 Ambient Temperature(℃): 10~32℃
Temperature Controller: Microprocessor Power(W): 500W
Current(A): 2.9 Inside Material: Stainless Steel
Outside Material: Color Sprayed Steel Capacity(L/cu.ft): 105/3.70
Package Size(W*D*H)(mm): 770*705*1090
High Light:

-86C Ultra Low Temperature Chest Freezer


FDA Ultra Low Temperature Chest Freezer


105L low temp vaccine freezer

-86ºC Self-Cascade System

-86℃ Ultra low temperature Chest freezer for vaccine

Characteristic Function
1. Safety door lock design to prevent abnormal door open
2. Wide voltage for AC187V-242V
3. Mute design for silent needed environment
4. Digital display with big screen, easy to check
5. Excellent thermal insulation performance with silicone door seal design(second door seal optional)
6. Mobile and fixable weel for move

Safety Guarantee
1. Temperature H/L alarm, sensor malfunction alarm, thermostat failure alarm
2. Audible and visible alarm
3. Keyboard lockable, password protection to prevent change running parameter randomly
4. Display running parameter with real-time monitoring to guarantee the stability of freezer

Refrigeration System
1. Imported brand compressor work with CFC-Free environmental rerigerant
2. High desity insulation foam layer with better heat preservation effect
3. Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption

Temperature ControlMode
1. With the international famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -40ºC to -86ºC.
2. High light digital display
3. H/L temperature alarm, the alarm temperature can be set as needed
4. PTC tempearture sensor, to make sure temperature accurately


  Model MDF-86H105
Specificaitons Shelf/drawer QTY /
Cooling Direct cooling
Defrost Manual
Refrigerant Mixed-gas
Power Consumption(kWh/24h) 3.8
Noise(db) 50
Ambient temperature(℃) 10~32℃
Temperature range(℃) -40~-86℃
Cooling system Compressor brand/QTY CUBIGEL/1
Sensor PTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 500W
Current(A) 2.9
Material Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 105/3.70
NT./GT.(kg) 63.7/68.5
Exterior size(W*D*H)(mm) 680*580*935
Interior size(W*D*H)(mm) 480*380*665
Package size(W*D*H)(mm) 770*705*1090
CBM 0.59
20GP/40GP/40HQ 24/51/51
Frozen Racks Racks 4(11X1,6X1)
Boxes (2 Inches) 34
Samples(2ml) 3400
Alarm High/low temperature Y
Power failure /
Abnormal voltage /
Sensor error Y
Filter screen check /
Thermostat failure Y
Low battery /
Condenser clean /
High ambient temperature /
Door ajar /
Power failure backup system(alarm) 12h
Accessories Castor Y
Inside door /
Test hole QTY/diameter 1/25MM
USB port /
Chart recorder /
Data logger Optional
Remote alarm port /
Optional CO2 back up system Optional
LN2 back up system Optional
Other Certification ISO.CE
